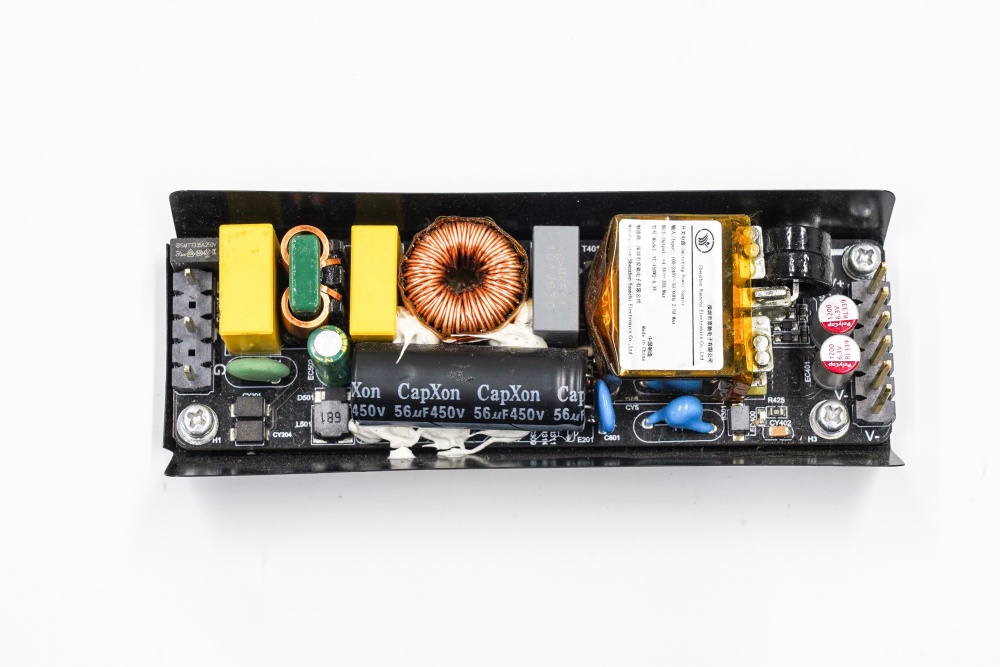

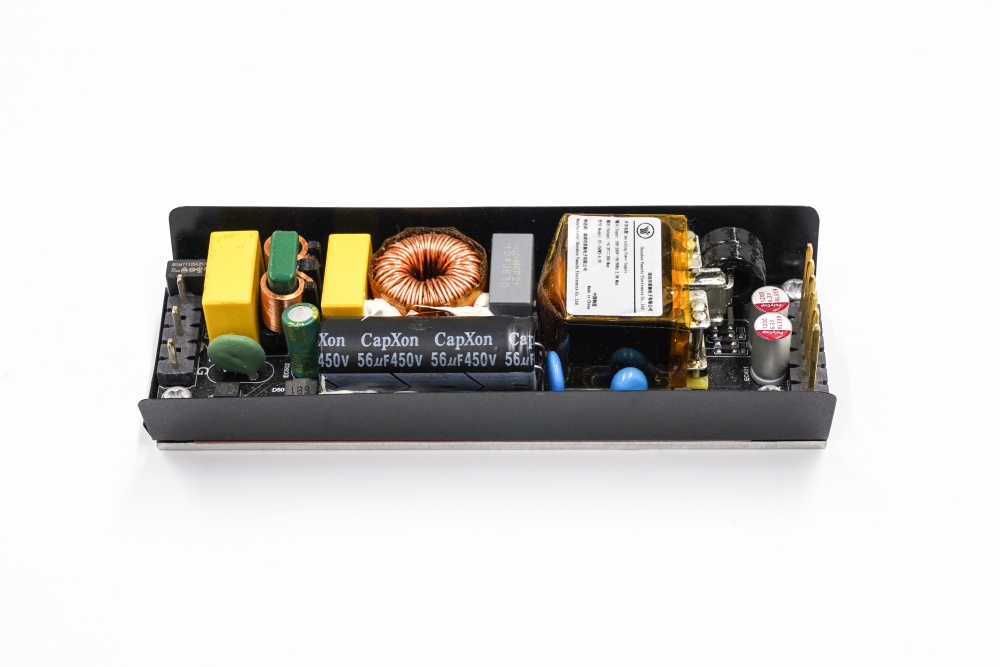

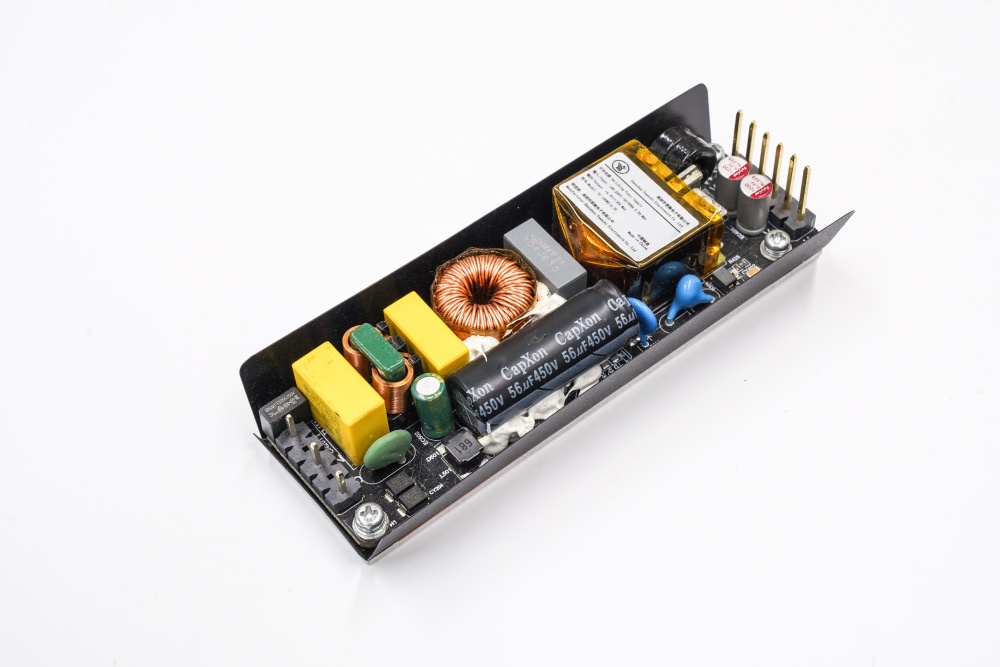

YC-150W2-4.3V 電源是一種將100VAC-240VAC市電轉換為4.3V直流電的變換裝置；采用先進的LLC 諧振控制技術，控制精確，輸入輸出隔離，安全高效，可靠性好，具備完善的保護功能；主要應用于電子、LED顯示屏、安防監控、軍工、通信、電力、燈具顯示、工業設備等領域。
|
Input voltage rang 輸入電壓
|
90Vac to 264Vac |
|
Normal voltage range 標稱輸入 |
100Vac to 240Vac |
|
Frequency range 頻率范圍 |
47Hz—63Hz |
|
Max input ac current 最大輸入電流 |
3Amax. at full load condition |
|
Inrush current (cold state) 浪涌電流 |
80A@230V |
|
Efficiency (full load) 效率 |
89%min.@230Vac |
|
Leakage Current 泄漏電流 |
Less Than 3.5 mA, @ 230Vac input |
|
Normal output power 額定功率 |
129W |
|
Input Fuse 輸入保險 |
T3.15AL/250Vac |
|
Power Factor 功率因素 |
PF>0.90/230Vac |
|
Safety Certification（安規認證） |
/ |
